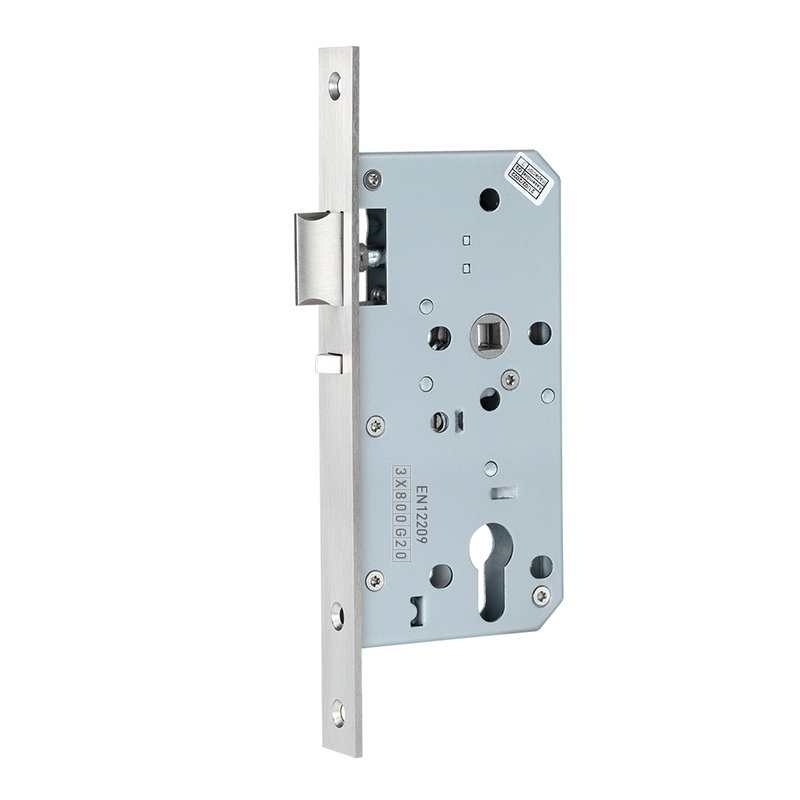

Cerradura de puerta embutida para aula 6072CR

  • 72 mm
  • 60 mm
  • EN12209-2016 3 X 8 0 0 G 2 0
Estado de Disponibilidad:
Cantidad:

Product Description


Model

6072CR

Latch

SS304

Safety Latch

SS304

Follower

SS304; size: 8*8mm

Forend

SS304; Thickness: 3mm

Compliance with

EN12209/DIN18251

Classroom mortise door lock 6072CR details

Classroom Function Fire Rated Mortise door lock


Classroom mortise door lock can be operated by cylinder/lever handle from either side, except when the mortise lock is locked by key. When the door is locked, inside lever handle/cylinder can open the door but in outside can be operated by key only.


Stainless Steel Material of classroom mortise lock


The classroom mortise lock use the material Stainless Steel 304 with higher melting point, which can better match the function of fire resistance and smoke control.


Features


  • Grade 3, according to European standard EN12209/DIN18251

  • Reversible latch suitable for DIN left and DIN right doors

  • 6072-72mm center distance ,60mm backset

  • Fire rated on steel door & timber door

  • Passed 200,000 test cycles (Latch)

  • Corrosion resistance 240 hours

  • Stainless steel 304 material


Different size of Classroom mortise lock


Related Items


We have many different functions of Fire rated stainless steel mortise door lock, include Entrance Mortise Lock, Passage Mortise Lock, Deadbolt Mortise Lock, Night Latch Mortise Lock, Escape Mortise Lock, etc.


Different fuctions of mortise lock
