Cerradura de puerta embutida de escape 6072ZE
Hogar » productos » Cerradura de embutir » Cerradura de puerta embutida CE » Cerradura de puerta embutida EN179 » Cerradura de puerta embutida de escape 6072ZE

Categoría

loading

Compartir con:

Cerradura de puerta embutida de escape 6072ZE

  • 72 mm
  • 60 mm
  • CE/UKCA (3 X 9 1 0 G - B 0 2 0)
  • 240 minutos (puerta de acero); 90 minutos (puerta de madera)
Estado de Disponibilidad:
Cantidad:

Product Description

Model

6072ZE

Latch

SS304

Deadbolt

SS304; 1 throw; Projection: 20mm

Follower

SS304; size: 8*8mm

Forend

SS304; Thickness: 3mm

Compliance with

CE UKCA EN179/EN1634-1

Fire resistance

240mins (Steel door)

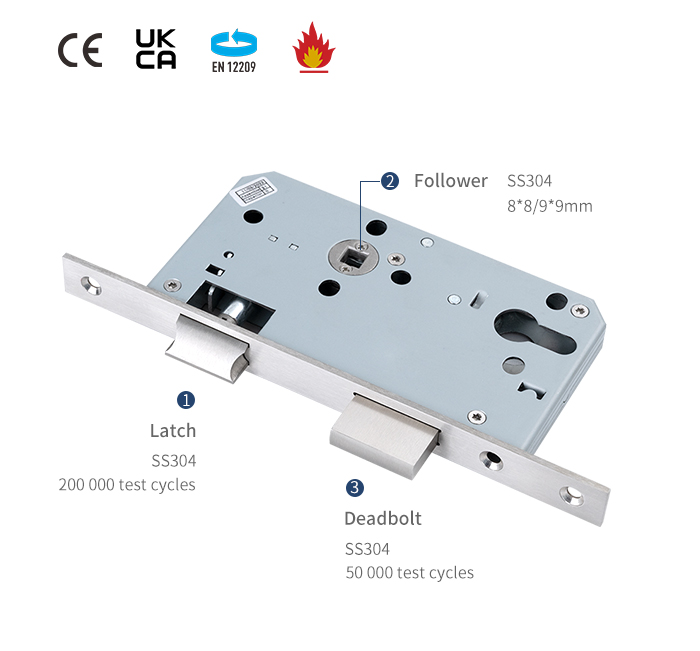

Escape mortise door lock 6072ZE details

Emergency Escape Mortise Lock


Escape mortise lock, passed CE certification according to EN179 standard, which is suitable for emergency exit doors, this anti-panic mortise lock is used in emergency situations or places such as football stadiums, offshore installations, barracks, public toilets, etc.


Function of stainless steel escape mortise lock


Escape mortise locks can be opened in the direction of escape by lever handle even when the doors are locked. The lever door handle can operated both latch and deadbolt at same time, which can saves a lot of time on the escape when there is an emergency.


Features


  • Grade 3, according to European standard EN179/EN12209/DIN18251

  • Reversible latch suitable for DIN left and DIN right doors

  • 6072ZE-72mm center distance ,60mm backset

  • Fire rated 240mins on steel door ; 90mins on timber door

  • Passed 200,000 test cycles (Latch) ; 50000 test cycles (Deadbolt)

  • Corrosion resistance 240 hours

  • One Throw deadbolt

  • Stainless steel 304 material


Size of Escape mortise lock

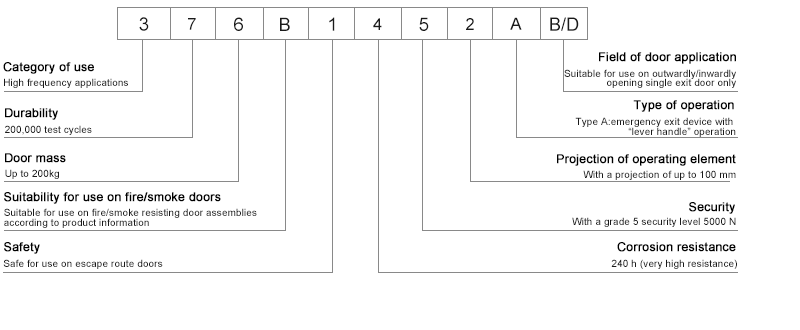

EN179 Classification


EN179 Classification of Escape mortise lock

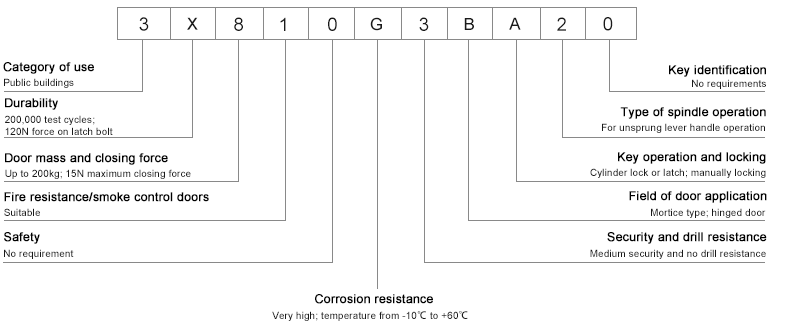

EN12209 Classification


EN12209 Classification of Escape mortise lock


Related Items


The fire rated escape mortise lock usually match with Grade 4 lever handle comply with EN1906. The core of Grade 4 lever handle is mage of stainless steel, which is stronger and more suitable for the emergency exit doors.

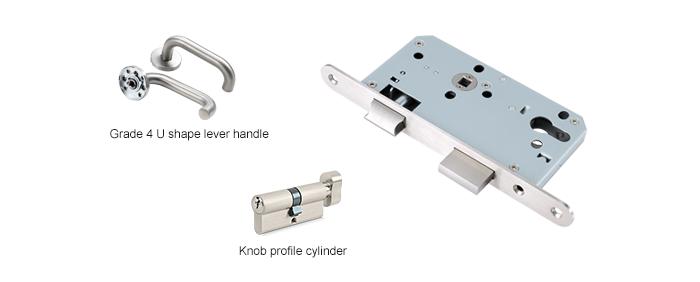

Escape mortise lock set with Grade 4 lever handle
