Cerradura de puerta embutida 8072Z

  • 72 mm
  • 80 mm
  • CE / UKCA (3 X 9 1 0 G 3 BC 2 0)
  • 240 minutos (puerta de acero);90 minutos (puerta de madera)
Estado de Disponibilidad:

Product Description






SS304, 2 throws, Projection:20mm


SS304; size: 8*8mm


SS304; Thickness: 3mm

Compliance with

CE UKCA EN12209/DIN18251/EN1634-1

Fire resistance

240mins (Steel door); 90mins (Timber door)

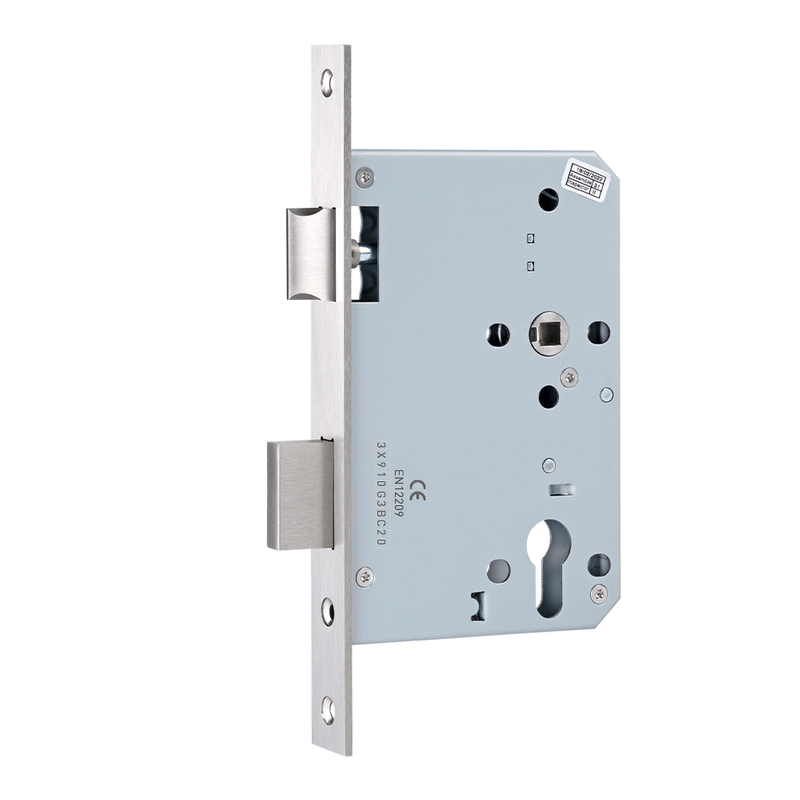

Mortise door 8072Z details

CE EN12209 Fire Resistant Mortise Door Lock

CE fire resistant mortise door lock is one kind of euro style mortise lock. The function of this door lock is entry mortise lock . Mortise lock is a lock that is fitted into the recess of the door rather than being surface, the visible part of mortise lock is forend , latch ,deadbolt once fitted. As a professional euro mortise lock suppliers, we can offer fire rated mortise locks with variety of functions, which are suitable for fire resistant and smoke control doors. Mortise lock size confirms to DIN standard. On commercial mortise locks, center distance is 72mm, the lockcase is drilled to accept 38mm bolt fixing furniture. Customized mortise door lock is acceptable, which means you can put your brand on the mortise lock or packaging. Our CE mortise lock passed fire resistant test which can be used in 240mins steel fire door and 90mins timber fire door. Satin stainless steel 304 material is durable and anti-rust. If you are looking for fire mortise lock for doors in projects , just contact us for more details, we will answer any of you questions.


  • Grade 3, according to European standard EN12209/DIN18251

  • Reversible latch suitable for DIN left and DIN right doors

  • 72mm center distance ,80mm backset

  • Fire rated 240mins on steel door ; 90mins on timber door

  • Passed 200,000 test cycles (Latch) ; 50000 test cycles (Deadbolt)

  • Very high corrosion resistance 240 hours

  • Double Throw (2 Turns) deadbolt

  • Stainless steel 304 material

  • Function: Entrance

  • Type: Euro standard door hardware


EN12209 Classification


Related Items

In addition to providing stainless steel mortise lock, we can also supply door handle and brass cylinder with different types. Feel free to contact us if you want one-stop shopping for door hardware used in project.
