72 mm
60 mm
EN12209/DIN18251
Estado de Disponibilidad: | |
---|---|
Cantidad: | |
Product Description
Model | 6072Z-SAE20 |
Latch | SS304+POM |
Deadbolt | SS304 |
Follower | SS304; size: 8*8mm |
Forend | SS304; Thickness: 3mm |
Compliance with | EN12209/DIN18251 |

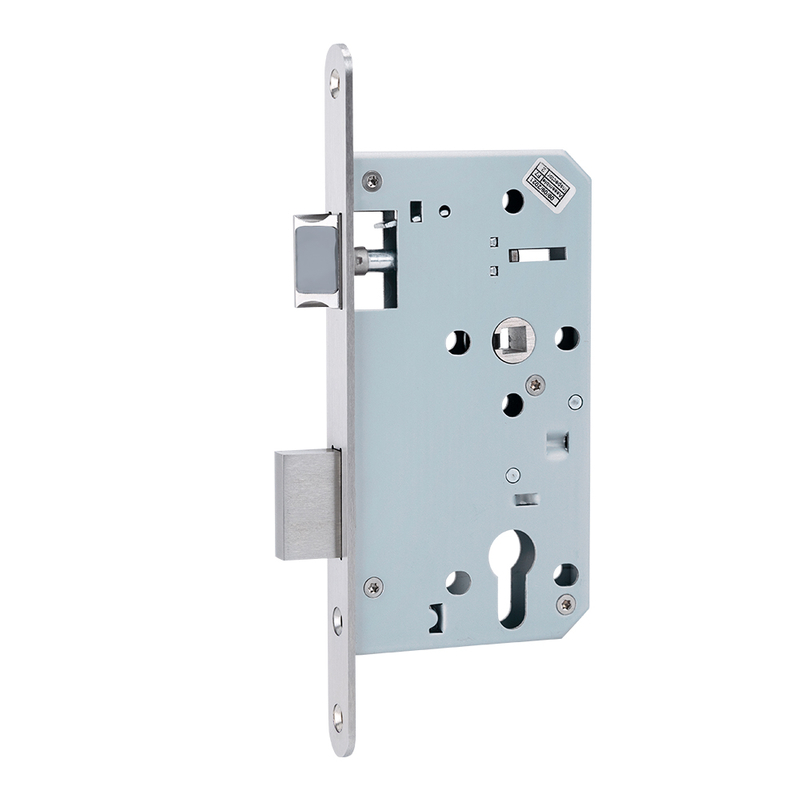

Mute Latch Mortise Door Lock
This is our new design of latch bolt, which is mute latch and reversible inside. The material of the latch is SS304+POM, projection of latch is 12mm.
And the mortise door lock is fire resistance in compliance with European standard CE EN12209. The main material is SS304 with high corrosion resistance. Can be widely used in public buildings.
Features
Grade 3, According to EN12209/DIN18251
Reversible inside
6072Z-SAE20, 72mm center distance, 60mm backset
Fire rated, 90mins on timber door, 240mins on steel door
Durability 200,000 test cycles
Corrosion resistance 240h
Material Stainless Steel 304
Related Items
The mute latch mortise lock, match with Euro lever handle and brass profile cylinder. There have many shapes of lever handle for your choice. And Various types of profile cylinder such as thumb turn cylinder and double open cylinder.
