Cerradura de puerta de embutir de paso 5572ZL

  • 72 mm
  • 55 mm
  • CE/UKCA EN12209 (3 X 9 1 0 G - B 0 2 0)
  • 240 minutos (puerta de acero);90 minutos (puerta de madera)
Estado de Disponibilidad:
Cantidad:

Product Description


Model

5572ZL

Latch

SS304

Follower

SS304; size: 8*8mm

Forend

SS304; Thickness: 3mm

Compliance with

CE UKCA EN12209/DIN18251/EN1634-1

Fire resistance

240mins (Steel door); 90mins (Timber door)

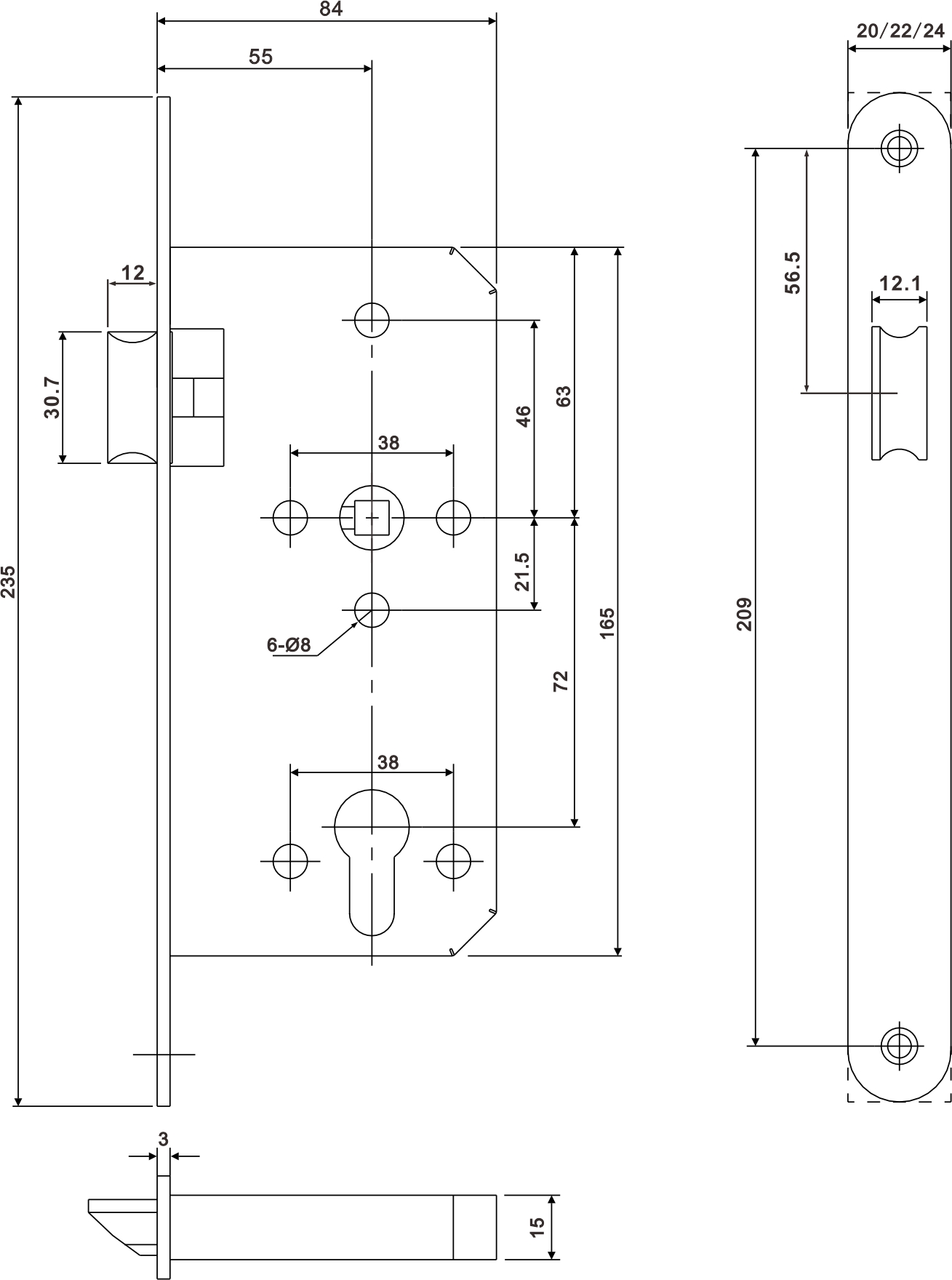

Passage mortise latch door lock 5572ZL details


Passage Function Mortise Door Lock


We offer a combination of products to suit the architectural buildings, such as office building, education, health care , air port, shopping mall and etc.  We can provide OEM solution. We produce fire rated European door mortise lock with different functions. Our latch mortice lock passed CE / UKCA certification according to EN12209/DIN18251 standard , also passed fire resistance test according to EN1634-1. The material is high quality SUS 304 , the forend we can do is round end or square end. This fire rated passage mortise door lock , is suitable for used on smoke control and fire proof doors.


Features


  • Grade 3, according to European standard EN12209/DIN18251

  • Reversible latch suitable for DIN left and DIN right doors

  • 72mm center distance ,55mm backset

  • Fire rated 240mins on steel door ; 90mins on timber door

  • Passed 200,000 test cycles

  • Corrosion resistance 240 hours

  • Stainless steel 304 material
