Cerradura de puerta con cerrojo de seguridad 6072ZD
Hogar » productos » Cerradura de embutir » Cerradura de puerta embutida CE » Cerradura de puerta embutida EN12209 » Cerradura de puerta con cerrojo de seguridad 6072ZD

Categoría

loading

Compartir con:

Cerradura de puerta con cerrojo de seguridad 6072ZD

  • 72 mm
  • 60 mm
  • CE / UKCA (3 X 9 1 0 G 3 BC 0 0)
  • 240 minutos (puerta de acero); 90 minutos (puerta de madera)
Estado de Disponibilidad:
Cantidad:

Product Description


Model

6072ZD

Deadbolt

SS304

Follower

SS304; size: 8*8mm

Forend

SS304; Thickness: 3mm

Compliance with

CE UKCA EN12209/DIN18251/EN1634-1

Fire resistance

240mins (Steel door); 90mins (Timber door)

Deadbolt mortise door lock 6072ZD details

Deadbolt Mortise Door Lock


Are you in search of a durable CE Mortise door lock for project? Look no further than the CE deadbolt mortise door lock.

The locks are made from high quality stainless steel, Which can match the fire resistance performance.

The CE deadbolt mortise door lock is an excellent choice for any public buildings in need of a reliable and durable mortise lock that meets the European standards for fire safety. With its CE certification, fire rated capabilities, and stainless steel construction, this lock is sure to provide you with years of reliable service.


Features


  • Grade 3, according to European standard EN12209/DIN18251

  • 72mm center distance ,60mm backset

  • Fire rated 240mins on steel door ; 90mins on timber door

  • Passed 50000 test cycles (Deadbolt)

  • Corrosion resistance 240 hours

  • Double Throw (2 Turns) deadbolt

  • Stainless steel 304 material

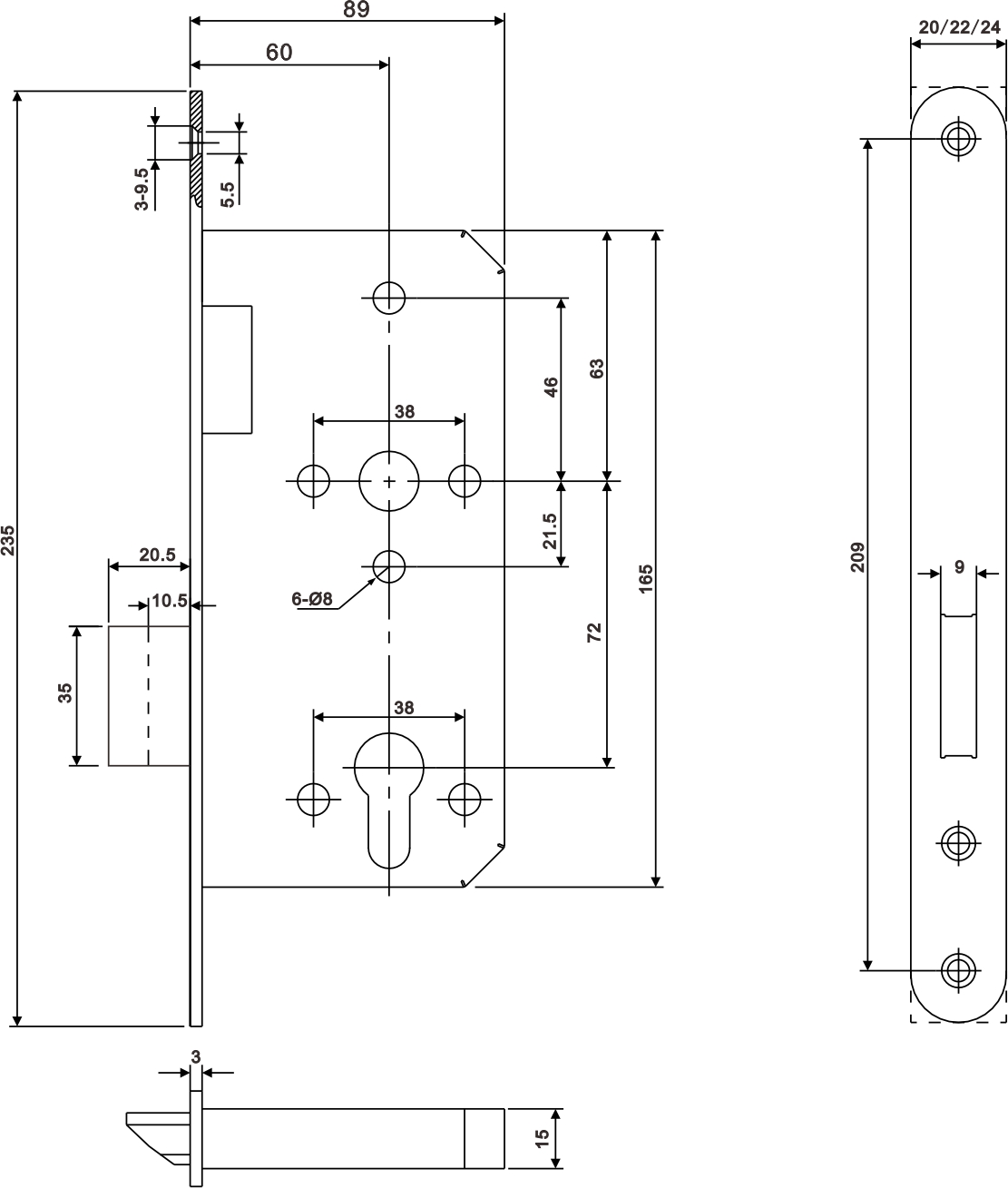

Backset of Deadbolt mortise lock


EN12209 Classification


Classification of Deadbolt mortise lock



Related Items


We can also provide you many types of Euro profile cylinder to match the deadbolt mortise door lock. The cylinder comply with EN1303 include: thumb turn profile cylinder; double open profile cylinder; half profile cylinder and toilet profile cylinder.


Various profile cylinders for Deadbolt mortise lock
